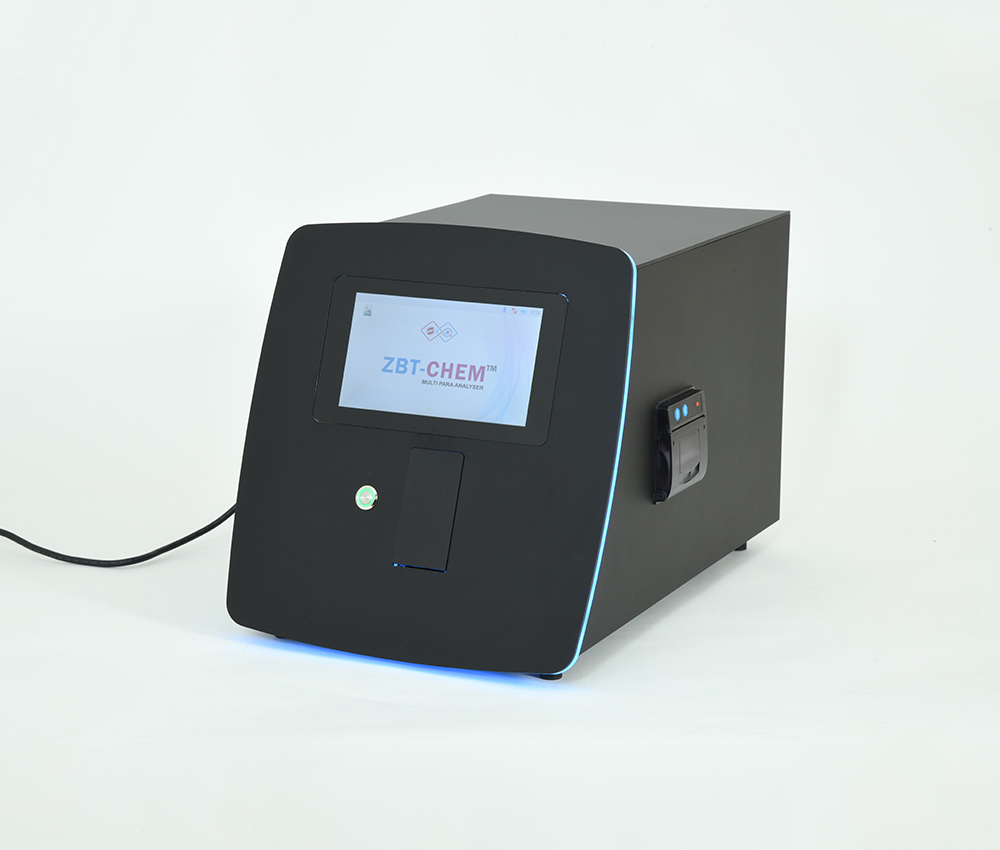

Semi Automatic Biochemistry Analyzer

ZellECHEM®

USFDA Registered Semi Automatic Chemistry Analyser.

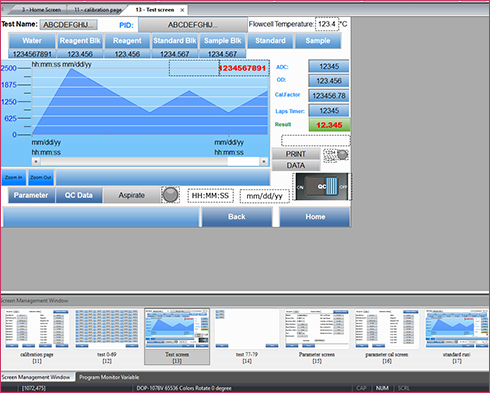

ZellECHEM® is a semi-automated chemistry analyser designed for use in Pathology Laboratories, researches, in-vitro diagnosis, clinical tests and hospitals that require affordability and quality. ZellECHEM®, The semi-automated chemistry analyser is equipped to handle endpoint, kinetic, Fix time (2 point Kinetic), Bichromatic and Absorbance analysis method. The open system format accommodates 80 programs and, for added convenience, 9999 results are stored along with graphs in PDF Formats. ZellECHEM® is a compact and table-top unit comprised with cuvette mode, offers filter wavelength of 304 nm, 405 nm, 450 nm, 505 nm, 546 nm, 630 nm and 2 extra spaces for optional filter positions. Designed with 7″ touch screen display, built-in thermal printer, offers real time graph display and supports USB interface for convenient data processing. Equipped with Photometric range of 0.000 to 3.000 Abs and stability of < 0.005 Abs /hr with Flow cell volume of 32 µL. ZellECHEM® is Manufactured by Sterile Safequip and Chemicals LLP (an USA based company)  and is Marketed by Zellen Biotech in India.

Standards and Regulations

  • ISO 13485
  • USFDA Registered
  • CDSCO Registered
  • CE Certified
  • IEC 61010-1:2010/AMD 1:2016
  • IEC 61010-1:2010
  • IEC 61010-2-101:2018
  • IEC 61326-1:2020
  • IEC 61326-2-6:2020

Why ZELLEChem®

Chemistry analysers are medical laboratory devices used to calculate the concentration of certain substances within samples of serum, plasma, urine and/or other body fluids. Substances analyzed through these instruments include certain metabolites, electrolytes, proteins, and/or drugs. Time and Cost Efficiency: ZellECHEM® is a Semi-automatic analyser that offer faster turnaround times compared to manual methods, reducing waiting times for patients. Moreover, its semi-automated nature often makes it more cost-effective than fully automated analysers. Flexibility:  ZellECHEM® provide flexibility in sample throughput, accommodating both low and high volumes of samples. This makes it suitable for Pathology laboratories with varying workloads. Ease of Use: The user-friendly interfaces and intuitive software of ZellECHEM® semi-auto analyser make it accessible to laboratory personnel with varying levels of technical expertise. Quality and Accuracy: With built-in quality control features and standardized assay protocols, ZellECHEM® semi-automatic analysers ensure accurate and reliable results, contributing to improved patient care and diagnosis.
Download PDF

ZELLEChem® Technical Characteristics

  • Power requirement: 110-230V AC 50Hz/60Hz
  • Light Source : 12V/10W Halogen lamp
  • Dimension: 400 X 300 X 160 mm(L x W x H)
  • Weight: 6.0 Kg
  • Ambient Temperature: 15~37 degree Celsius, with fluctuation less than +/- 2Degree celcius/H
  • Relative Humidity: 35% RH – 80% RH, without condensation
  • Cuvette mode: available
Instument
Product code
ZCH01
ZCH02
ZCA01
ZBCR01
ZellECHEM-SR (without Incubator)
ZellECHEM-PRO (with Incubator)
Flowcell Cuvette
Barcode Reader
